Combine data with UNION in DAX

Using UNION in DAX is a third option to combine data for analysis in Power BI

We recently showed how to do this in SQL


and how to do similar in Power Query
APPEND in Power Query

It isn’t always possible to do this in SQL such as if the datasets are coming from separate systems, and depending on the circumstances you may not want to do it in Power Query either. Doing it using DAX in Power BI to create the table is another alternative

UNION in DAX Syntax

Before you can use the DAX command, the tables you want to union must be in the data model

We will use the same two sample data tables that we used for the Append example last week

the first covers store numbers 1 to 5 (SalesA)

A table of sales by store

And the second covering store numbers 5 to 10 (SalesB)

A sample sales dataset

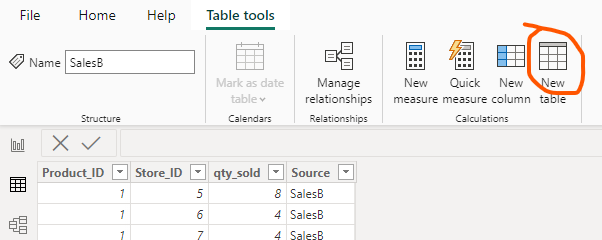

to create a new UNION table, go into the table view pane and click 'New Table'

New Table option in the modelling tab in Power BI

The syntax is:

New Table Name = UNION(table1,table2)

We will call the new table 'Sales Combined'

In the DAX formula bar we enter

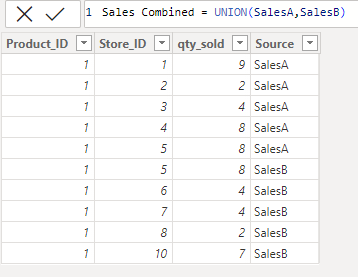

Sales Combined = UNION(SalesA,SalesB)

UNION in DAX example

Once you press enter the DAX code runs and the new table is produced

We can see that the new table contain all 5 rows from SalesA and all 5 rows of SalesB

This is very straight forward in this example and simply combines the two datasets in a simple way

If you look carefully you can see that Store 5 Product 1 does have the same data for now we will assume these are not duplicates, but we will return to this to show how to deal with duplicates

Important points to note

For UNION to work there are a few considerations that must be in place, and these are essentially the same as UNION ALL in SQL

  1. The columns MUST be in the same order in both tables, if they are not it is possible that the UNION could still run, but give strange mixed results
  2. The data types of the columns must be compatible
  3. Column names are inherited from the first table, they do not have to be the same
  4. Tables must have the same number of columns
  5. Duplicates are not eliminated (we will explore this)

How to remove duplicates?

To demonstrate this we firstly need to remove our Source column

SELECTCOLUMNS(SalesA,"Product_ID",SalesA[Product_ID], "Store_ID", SalesA[Store_ID], "qty_sold", SalesA[qty_sold])

This DAX code just selects the three columns we need

We repeat this for both tables, then apply this into the union

Sales Combined = union(SELECTCOLUMNS(SalesA,"Product_ID",SalesA[Product_ID], "Store_ID", SalesA[Store_ID], "qty_sold", SalesA[qty_sold]),SELECTCOLUMNS(SalesB,"Product_ID",SalesB[Product_ID], "Store_ID", SalesB[Store_ID], "qty_sold", SalesB[qty_sold]))

We now see the 10 rows without the source column

To remove the duplicate for store 5, we can now use the DISTINCT command

Sales Combined = DISTINCT (union(SELECTCOLUMNS(SalesA,"Product_ID",SalesA[Product_ID], "Store_ID", SalesA[Store_ID], "qty_sold", SalesA[qty_sold]),SELECTCOLUMNS(SalesB,"Product_ID",SalesB[Product_ID], "Store_ID", SalesB[Store_ID], "qty_sold", SalesB[qty_sold])))

This results in 9 rows

Union in DAX with duplicated removed

You can see here that other table based operations can be used within UNION, here we use the select columns to only select the relevant columns for the union

This method would work with tables which have a different number of columns

UNION with more than two tables

Union needs to have at least 2 table references, but it is not limited to a fixed number

If we want to union three tables we just add more

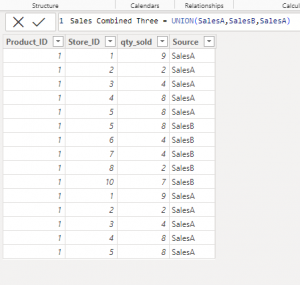

Sales Combined Three = UNION(SalesA,SalesB,SalesA)

This example also shows that you can repeat the same table if you need to

Union in dax with more than 2 tables


With this third way to combine data tables in Power BI you are now equipped to perform your data consolidation

Having a seamless integration of multiple tables or queries is a great way to simplify onward analysis
